Meet STAX: Your plug‑and‑play modular LED display
Looking for a bright, flexible sign that snaps together in minutes? STAX does exactly that—with panels you can rearrange without tools or cranes. And yes, you can update content from your phone or laptop.
STAX FEATURES

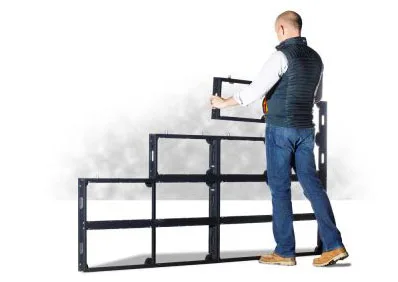

Modular design
Modular, tool-free assembly: The entire setup snaps together in under 30 minutes—really.
Remote content updates: Update messages or video ads instantly from any device.
Outdoor-ready durability: Built to withstand rain, extreme heat, and buzzing foot traffic.
Energy-smart: Uses 40% less power than traditional LED signs—saves you money long-term.

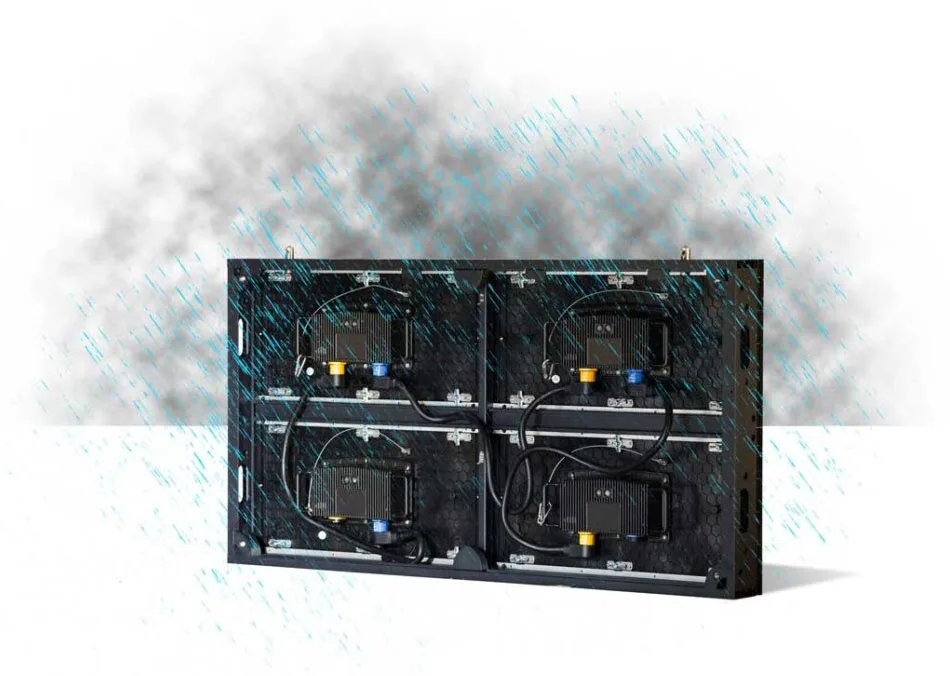

Solid state construction
Constructed with no moving parts. Every display features sealed modules, automotive-grade cabling and an advanced control system.
STAX™ IS A RUGGED DISPLAY requiring no cooling elements or ventilation. This cutting-edge technology is designed to withstand: heat, wind, cold, humidity, salt and any other environmental enemy of traditional digital signage.

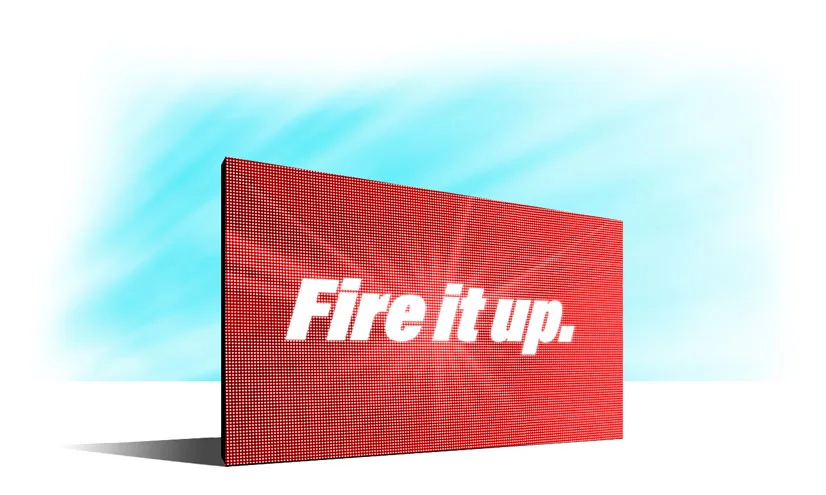

Plug in and play
Designed for plug-n-play installation. Connect an assembled STAX™ display to power and it automatically comes online via an internal cellular router. The all-environment PC allows for remote display configuration and verification by NEXT technicians.
Why customers love STAX:
Faster installs → saves labor and time.
More agility → change campaigns at will.
Built for business → withstands weather and busy locations.
Smart ROI → lower running costs, stronger engagement.
Stax models feature 9.5 mm SMD high resolution brightness (8,500+ NITS).
No wireless devices and no cellular data service charges for the lifetime of the display. Save time, money, and hassle.
Cloud-based software allows for content control from any device anywhere. Every display includes a lifetime membership to the content library at ProjectContent.com.
Want more information?
STAX FEATURES
Experience NEXT level support.
We are a company of exceptional people who do what they say they will do. Like our products, we perform at high levels every day and we will always do the right thing.
If you have an issue that you can’t resolve, contact us. We own all the problems that come our way; we don’t pass them off without a solution. We find it.
Luke Luttrell
Chief Executive Officer
Brett Wright
Vice President of Sales and Marketing
Kale Kroupa
Director of Customer Experience
Kendall Newbern
National Sales Manager
Chris Holmgren
Director of Operations
Michael Caiazza
Director of Service
TECHNICAL SPECIFICATIONS
Physical Parameters
PIXEL CONFIGURATION
PIXEL PITCH
PIXEL MATRIX PER CHANEL
FRAME MATERIAL
SIZE
FRAME DEPTH
MODULE WEIGHT
1′ X 2′ FRAME WEIGHT
2′ X 4′ FRAME WEIGHT
3-IN-1 SMD
9.525 mm
32 x 64
Aluminum
12″ x 24″
2″ 3/4
5.5 lbs
3 lbs
11 lbs
Physical Parameters
PIXEL CONFIGURATION
PIXEL PITCH
PIXEL MATRIX PER CHANEL
FRAME MATERIAL
SIZE
FRAME DEPTH
MODULE WEIGHT
1′ X 2′ FRAME WEIGHT
2′ X 4′ FRAME WEIGHT
3-IN-1 SMD
9.525 mm
32 x 64
Aluminum
12″ x 24″
2″ 3/4
5.5 lbs
3 lbs
11 lbs
Electronic Parameters
COLOR GRAYSCALE
REFRESH RATE
FRAME FREQUENCE
16 BIT
3840 Hz
50/60 Hz
Electronic Parameters
COLOR GRAYSCALE
REFRESH RATE
FRAME FREQUENCE
16 BIT
3840 Hz
50/60 Hz
Optical Parameters
BRIGHTNESS
COLOR TEMPERATURE
CONTRAST RATIO
HORIZONTAL VIEWING ANGLE
VERTICAL VIEWING ANGLE
16 BIT
3840 Hz
50/60 Hz
160 DEG
90 DEG
Optical Parameters
BRIGHTNESS
COLOR TEMPERATURE
CONTRAST RATIO
HORIZONTAL VIEWING ANGLE
VERTICAL VIEWING ANGLE
16 BIT
3840 Hz
50/60 Hz
160 DEG
90 DEG
Electrical Parameters
AC INPUT VOLTAGE
AC INPUT FREQUENCY
MAX/AVG POWER PER MODULE
100-240 BIT
50/60 Hz
1.35/.66 Amps
Electrical Parameters
AC INPUT VOLTAGE
AC INPUT FREQUENCY
MAX/AVG POWER PER MODULE
100-240 BIT
50/60 Hz
1.35/.66 Amps
Environmental Parameters
STORAGE TEMPERATURE
WORKING TEMPERATURE
STORAGE HUMIDITY
WORKING HUMIDITY
TYPICAL LIFE
IP RATING
-40-140˚F
-20-140˚F
10-90%
10-90%
100,000 Hrs
IP67/IP67
Environmental Parameters
STORAGE TEMPERATURE
WORKING TEMPERATURE
STORAGE HUMIDITY
WORKING HUMIDITY
TYPICAL LIFE
IP RATING
-40-140˚F
-20-140˚F
10-90%
10-90%
100,000 Hrs
IP67/IP67
Product Install
PANEL INSTALLATION METHOD
STANDARD LIFTING CAPACITY
Fixed installation
20 modules plus frame per lifting point
Product Install
PANEL INSTALLATION METHOD
STANDARD LIFTING CAPACITY
Fixed installation
20 modules plus frame per lifting point
Quantity Requirements
1′ X 2′ 9.5 MM LED DISPLAY MODULE
STAX LED DISPLAY PC CONTROLLER
CONTROLLER SLIDE MOUNT
1′ X 2′ DISPLAY FRAME
2″ X 4′ DISPLAY FRAME
1′ X 2′ DISPLAY FRAME DOOR
2′ X 4′ DISPLAY FRAME DOOR
BOOST POWER CONTINUATION CABLE
CONTROLLER CABLE KIT
Fixed installation
1 per double face display
Optional for installation
1 frame supports 1 module
1 frame supports 4 modules
1 door per frame
2 doors per frame
1 per each 12 mods starting at 13
1 per display face
Quantity Requirements
1′ X 2′ 9.5 MM LED DISPLAY MODULE
STAX LED DISPLAY PC CONTROLLER
CONTROLLER SLIDE MOUNT
1′ X 2′ DISPLAY FRAME
2″ X 4′ DISPLAY FRAME
1′ X 2′ DISPLAY FRAME DOOR
2′ X 4′ DISPLAY FRAME DOOR
BOOST POWER CONTINUATION CABLE
CONTROLLER CABLE KIT
Fixed installation
1 per double face display
Optional for installation
1 frame supports 1 module
1 frame supports 4 modules
1 door per frame
2 doors per frame
1 per each 12 mods starting at 13
1 per display face
Stax is licensed under the United States Patent No. 8,992,037.
“I’m wondering why I never contacted these guys sooner! Seriously, they all have commendable talent in their respective fields and knocked my concept out of the ballpark. Thanks for an amazing experience!”
Mark Johnson
PRESIDENT
Frequently Asked Questions About Stax LED Displays
What is the primary advantage of the STAX modular design for commercial businesses?
Unlike traditional cabinet-style signs that require heavy cranes and specialized crews, STAX features a tool-free, snap-together assembly. This modularity allows for rapid deployment (often under 30 minutes) and gives businesses the flexibility to rearrange or expand their display panels without replacing the entire unit.
How does the solid-state construction of STAX improve long-term reliability?
Most digital signs rely on mechanical fans for cooling, which are prone to failure from dust and moisture. STAX is engineered as a 100% solid-state system with no moving parts. By utilizing advanced thermal dissipation and sealed modules, STAX eliminates these common failure points, resulting in a more rugged display that withstands extreme wind, heat, and humidity.
Can I update content on my STAX display remotely without specialized software?
Yes. Every STAX unit includes internal cellular connectivity (Verizon 4G/5G) and cloud-based control. This allows you to update high-definition video or text instantly from any mobile device or laptop. There is no need for local servers, dedicated computers, or complex wiring—the sign comes online as soon as it’s plugged in.
What is the visibility rating for STAX in direct sunlight?
STAX modules are engineered with 8,500+ NITS of brightness and high-resolution 9mm SMD technology. This level of output ensures that your content remains vibrant and “articulate” even in peak afternoon sun, preventing the “washed-out” look common in lower-tier commercial displays.
Does STAX include a content library for the life of the sign?
Every STAX display comes with a lifetime membership to ProjectContent.com, the world’s leading digital signage content library. This gives you immediate access to professional graphics and animations, ensuring your sign always looks high-end without the need for a dedicated graphic designer.
