Meet APEX: Seamless LED Video Walls, Indoors or Out
Want a high-impact LED display that turns heads in any space? APEX is built for performance—indoors or outdoors—with crisp resolution, no visible seams, and flexible sizing that fits your vision. From retail environments to open-air venues, APEX helps your message shine.
APEX FEATURES
Enhanced Aesthetics
- Flawless visual clarity: Choose your pixel pitch for up-close indoor viewing or large-scale outdoor visibility.
- Flexible layout options: Build standard or custom-shaped video walls—tall, wide, or creative formations.
- Indoor or outdoor rated: APEX panels are engineered for both environments, with weather protection and bright, reliable imagery.
- Low-profile installation: Panels sit flush and clean on most surfaces—no bulky framing needed.
- Easy control + live input: Compatible with content scheduling platforms, live video, or third-party broadcast systems.
Why APEX wins:

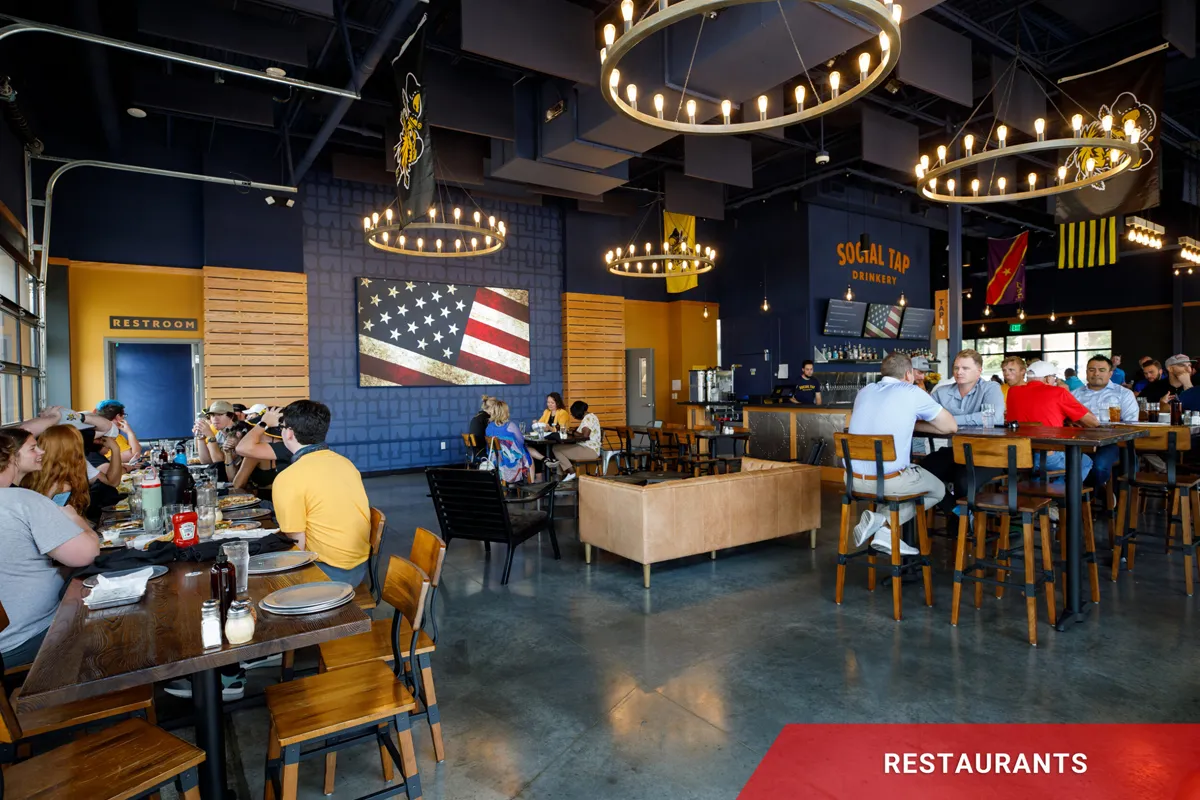

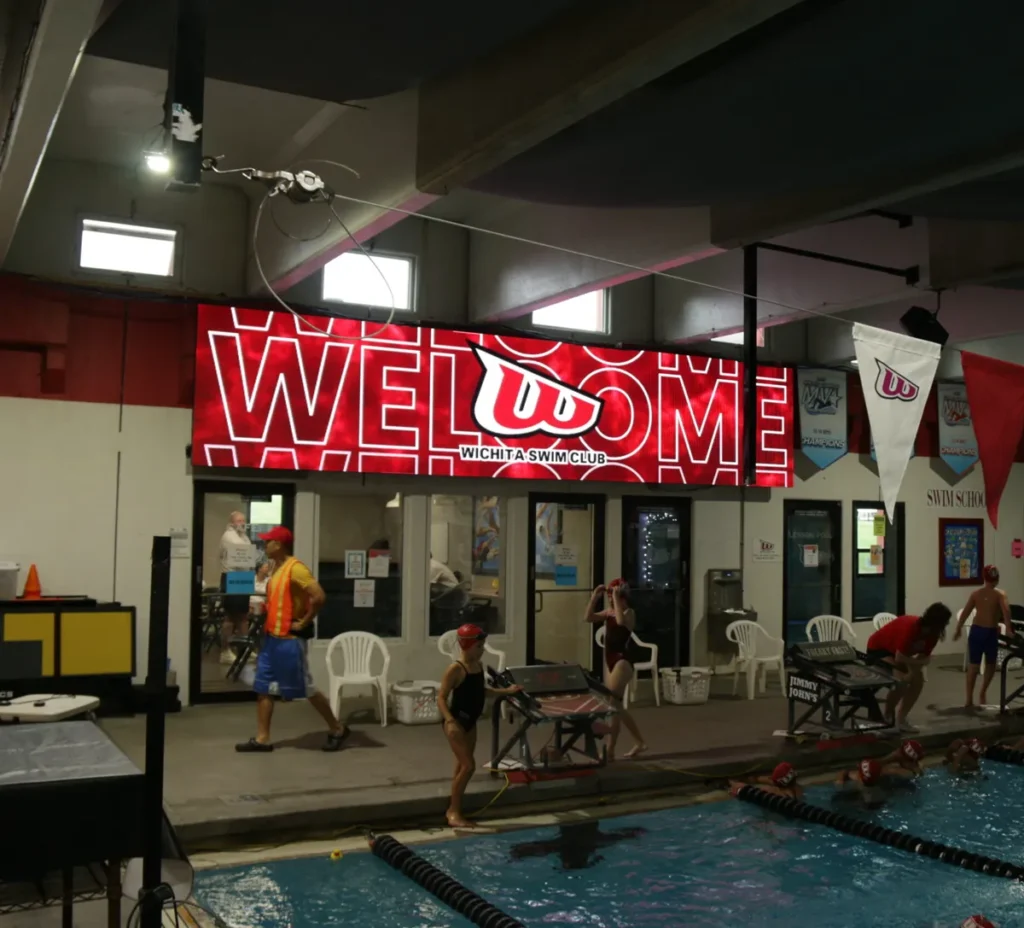

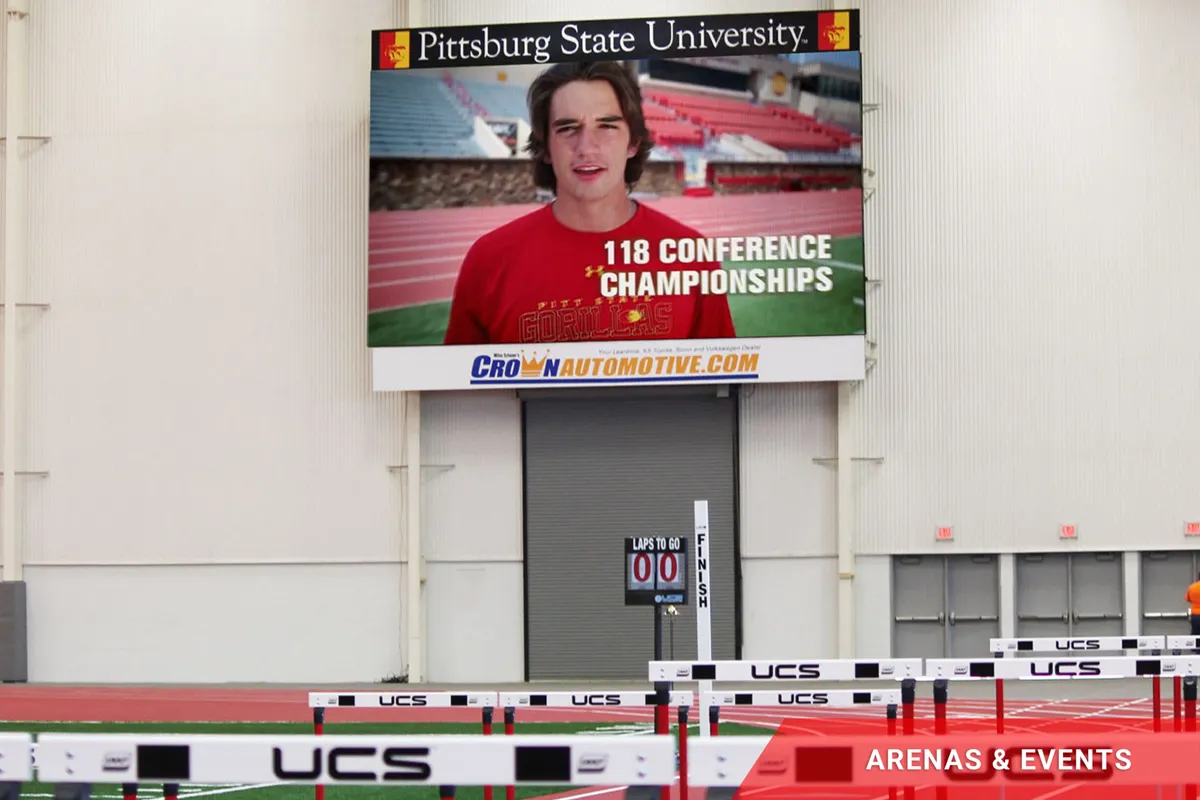

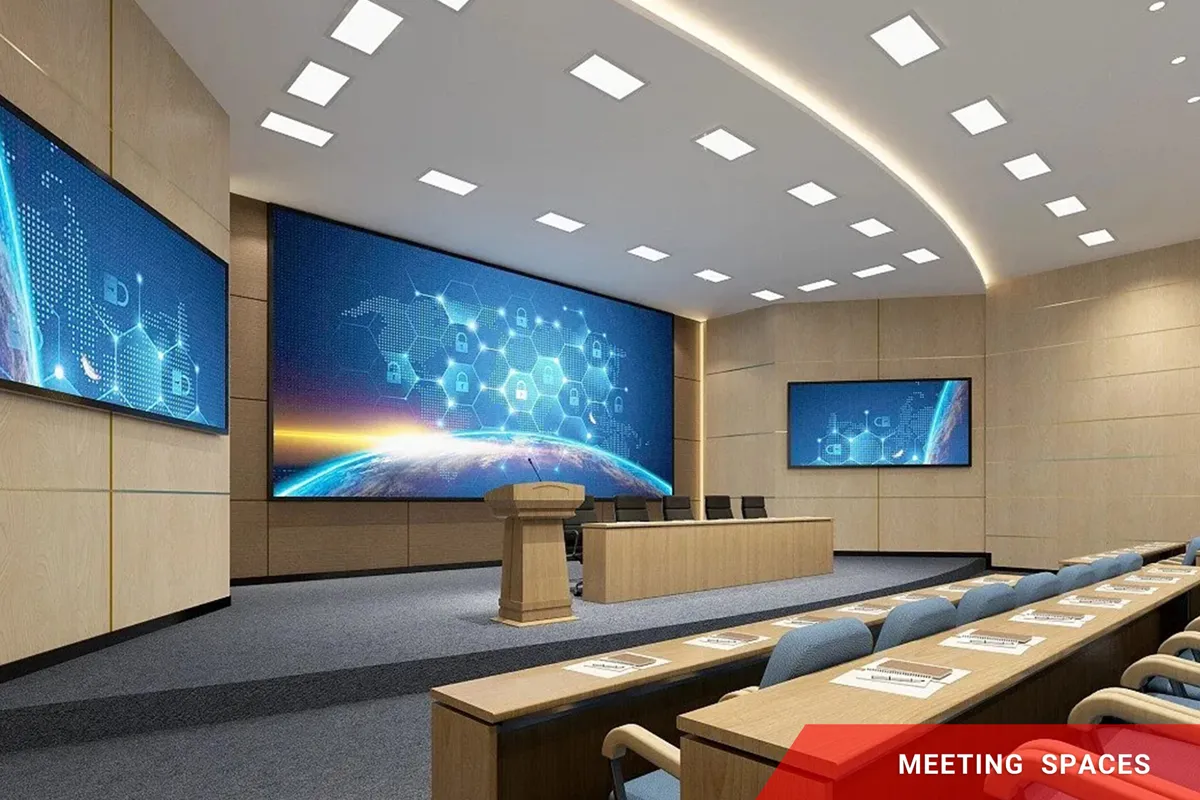

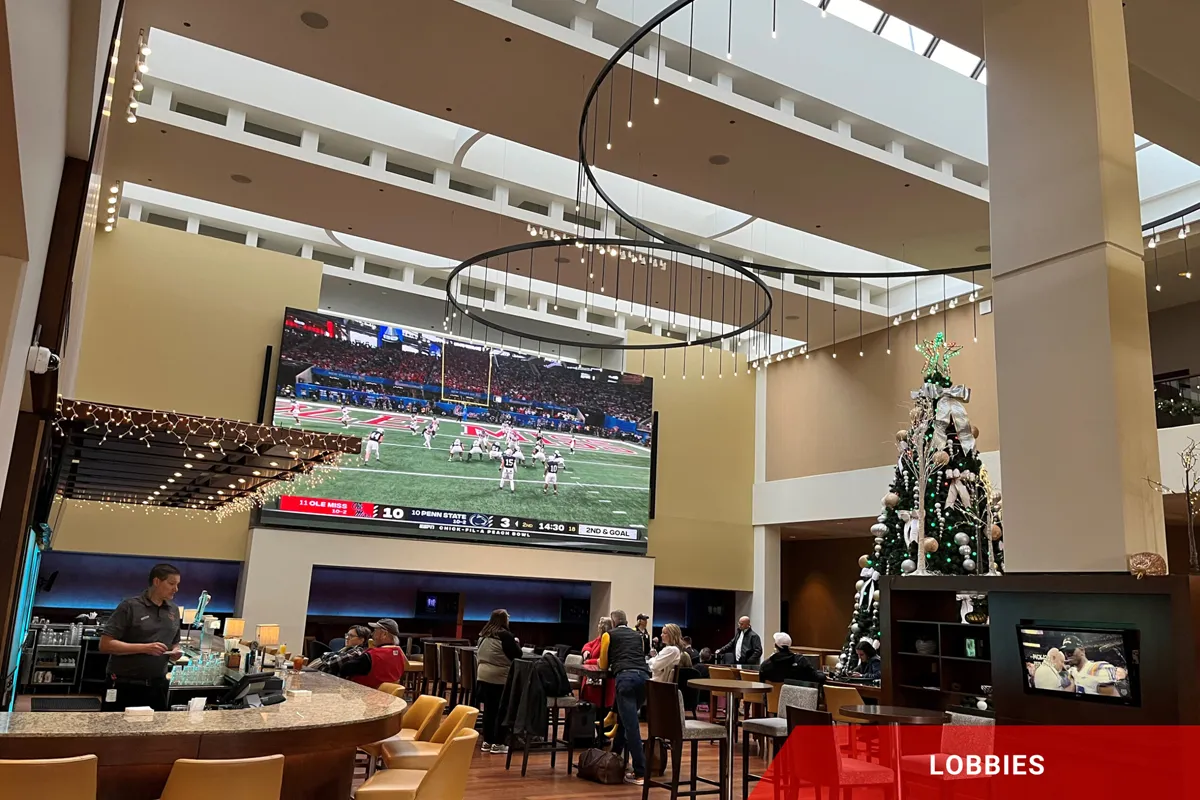

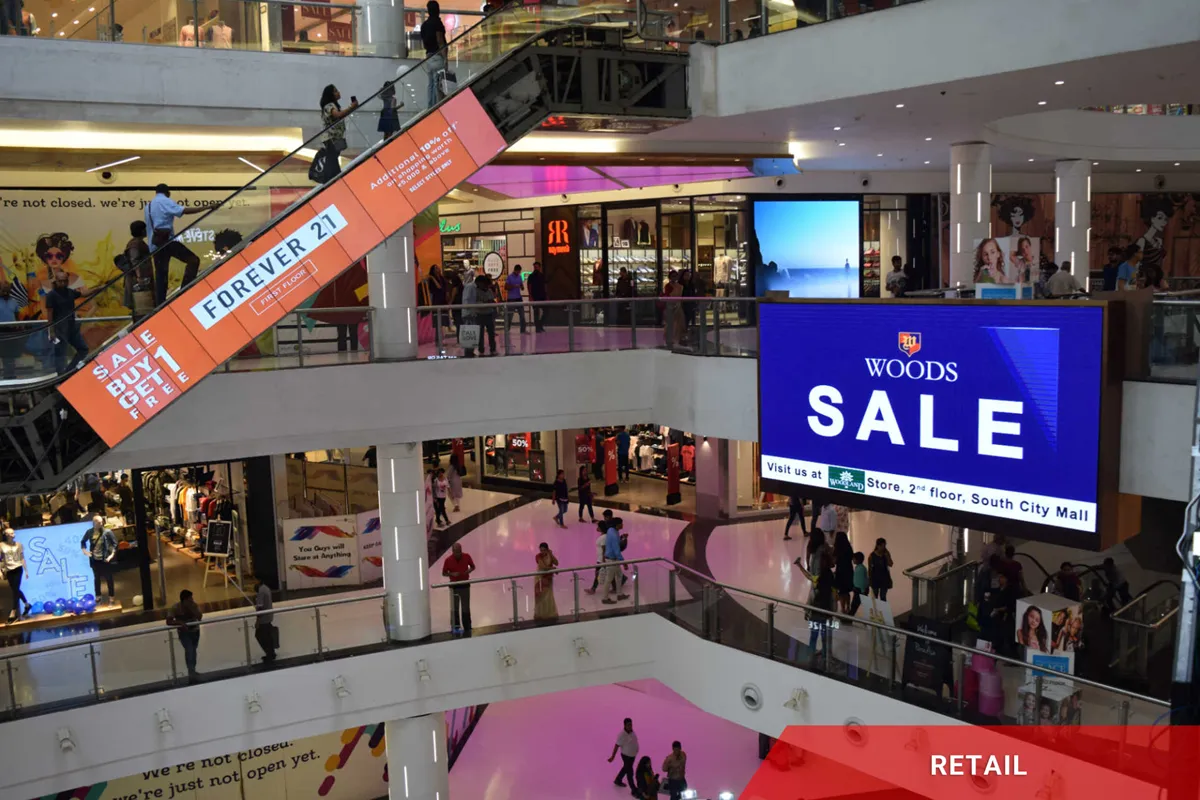

Perfect for→ Storefronts, stages, lobbies, scoreboards, video walls, and large-format branding.

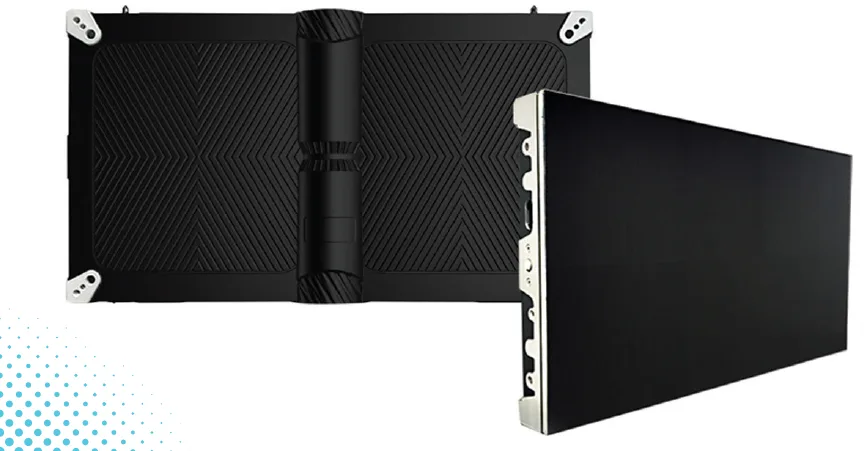

Modular design→ Panels connect quickly and scale as your display grows.
Outdoor protection→ Weather-sealed for permanent exterior installs.
Total visual impact → your message pops with seamless, cinematic color.
Design freedom → go floor-to-ceiling, circle, or custom shapes.
Reliable & future-ready → built for heavy use and easy upgrades.
Smart investment → long-lasting panels, scalable control—get ROI from day one.
Ultra high-definition displays from 1-4mm
Integrate your display with a custom control system solution. Capable of integration with live event production software, sports scoreboard applications, and advertising platforms.
Transform your space with a vivid display unbound by the traditional 16:9 aspect ratio limitation of LCD display screens.
Want more information?
Experience NEXT level support.
We are a company of exceptional people who do what they say they will do. Like our products, we perform at high levels every day and we will always do the right thing.
If you have an issue that you can’t resolve, contact us. We own all the problems that come our way; we don’t pass them off without a solution. We find it.
Luke Luttrell
Chief Executive Officer
Brett Wright
Vice President of Sales and Marketing
Kale Kroupa
Director of Customer Experience
Kendall Newbern
Regional Sales Manager
Chris Holmgren
Director of Operations
Michael Caiazza
Director of Service
TECHNICAL SPECIFICATIONS - INTERIOR SMD
| Technical Specifications | ||||||||||||
| INTERIOR SMD | 1.2 | 1.5 | 1.9 | 2.4 | 2.9 | 3.9 | 5.9 | |||||
| Physical Parameters | Pixel Pitch (mm) | 1.26 | 1.56 | 1.95 | 2.4 | 2.9 | 3.91 | 5.95 | ||||
| Pixel Matrix per Panel | 468×832 | 320×640 | 256×512 | 208×416 | 168×336 | 128×256 | 84×168 | |||||
| Cabinet Material | Die Cast Aluminum | |||||||||||
| Electronic Parameters | Color Grayscale (Bit) | 14 – 16 | ||||||||||
| Grey Scale per Color (Level) | 65536 | |||||||||||
| Refresh Rate (Hz) | 3840 | |||||||||||
| Optical Parameters | Brightness (nit) | 600 | 3500 800 | 4000 1000 | 4000 1000 | 4000 1000 | 4000 1000 | 4000 1000 | ||||
| Color Temperature (K) | 3200 – 9300 | |||||||||||
| Horizontal Viewing Angle | 140 ˚ | |||||||||||
| Vertical Viewing Angle | 140 ˚ | |||||||||||
| Electrical Parameters | AC Input Voltage (V) | 100~240 | ||||||||||
| AC Input Frequency (Hz) | 50/60 | |||||||||||
| Product Install | Panel Installation Method | Fixed Installation / Front Service | ||||||||||
| INTERIOR COB | 1.2 | 1.5 | 1.9 | |||||||||
| Physical Parameters | Pixel Pitch (mm) | 1.26 | 1.58 | 1.9 | ||||||||
| Pixel Matrix per Panel | 270×240 | 216×192 | 180×160 | |||||||||
| Cabinet Material | Die Cast Aluminum | |||||||||||
| Electronic Parameters | Color Grayscale (Bit) | 14 | ||||||||||
| Grey Scale per Color (Level) | 65536 | |||||||||||
| Refresh Rate (Hz) | 3840 | |||||||||||
| Optical Parameters | Brightness (nit) | 600 | 600 | 600 | ||||||||
| Color Temperature (K) | 3200 – 9300 | |||||||||||
| Horizontal Viewing Angle | 170 ˚ | |||||||||||
| Vertical Viewing Angle | 160 ˚ | |||||||||||
| Electrical Parameters | AC Input Voltage (V) | 100~240 | ||||||||||
| AC Input Frequency (Hz) | 50/60 | |||||||||||
| Product Install | Panel Installation Method | Fixed Installation / Front Service | ||||||||||

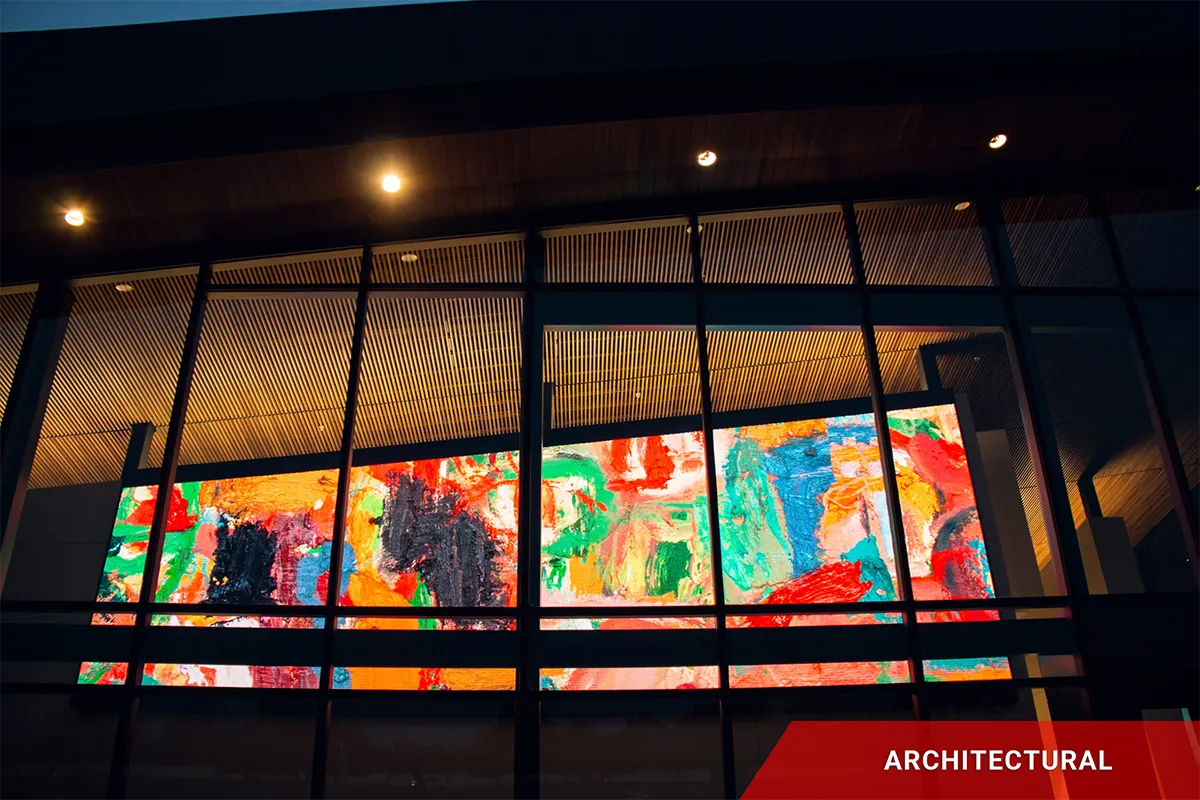

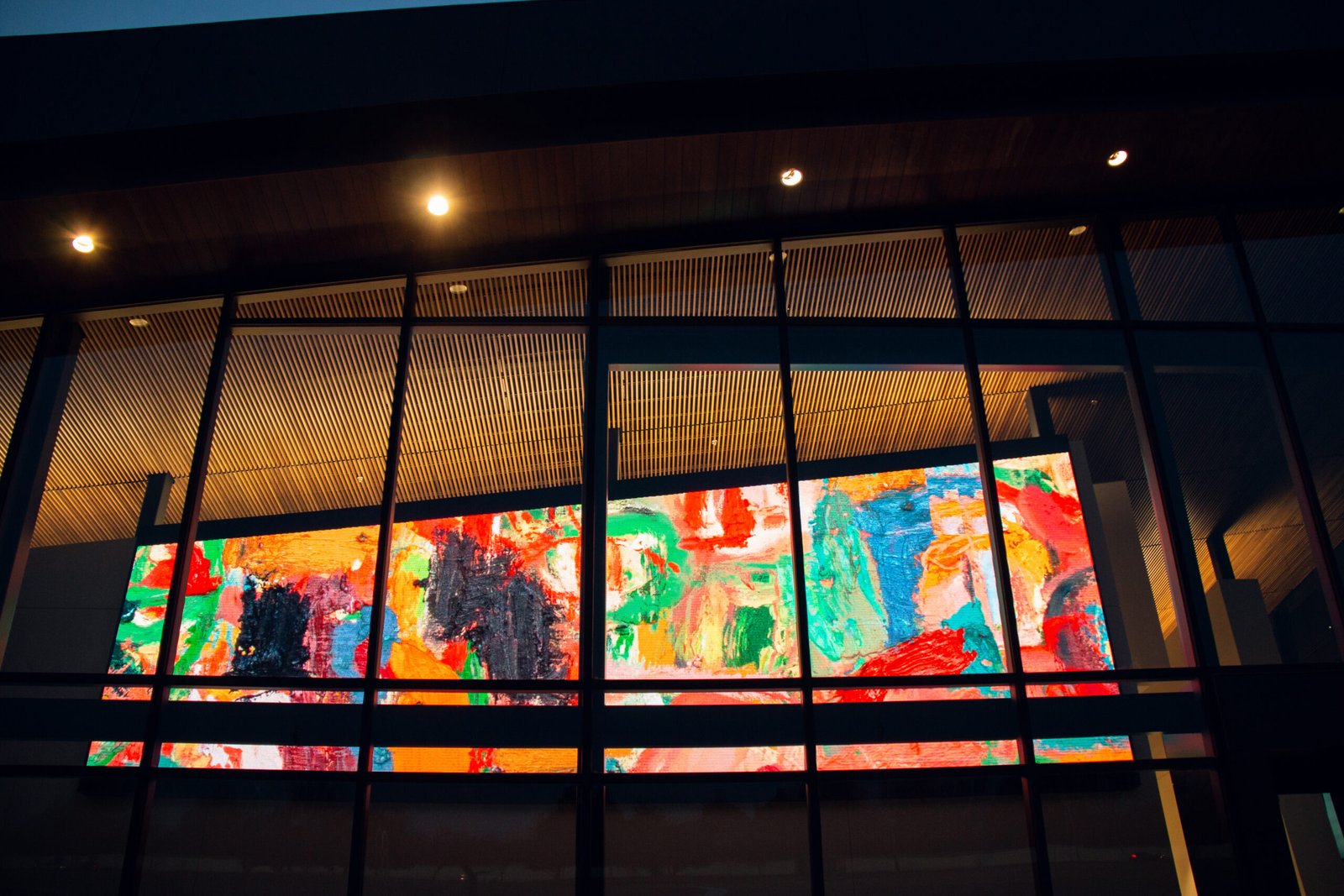

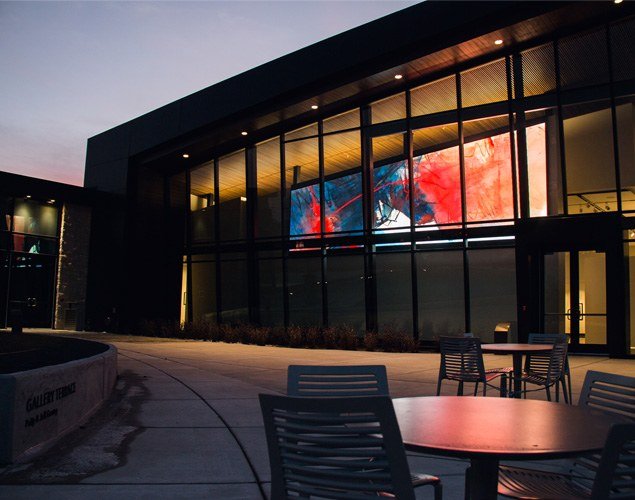

“The Art to the City digital display and outdoor digital sign from Next LED Signs have transformed the way we engage the community with the mission of Mark Arts. Showcasing our exhibitions in a dynamic, eye-catching way to anyone passing our community’s fifth-busiest intersection has been a game-changer. It’s helped us connect with visitors in a way that traditional signage simply couldn’t.”
— Katy Dorrah, Mark Arts Center
Frequently Asked Questions About Apex Displays
What is the difference between APEX Interior SMD and COB technology?
While both provide exceptional clarity, our APEX Interior COB (Chip-on-Board) technology is designed for ultra-high-definition viewing at the closest distances (1.2mm to 1.9mm). By mounting the LED chips directly to the substrate, we achieve a 170° viewing angle and a more durable, “dust-proof” surface, whereas our SMD line offers a versatile, cost-effective solution for large-scale video walls with pixel pitches up to 5.9mm.
How does the seamless design of APEX compare to traditional tiled LCD displays?
Traditional LCD video walls are limited by “bezels” or visible seams that break up the image. APEX is engineered with precision die-cast aluminum cabinets that align perfectly, creating a 100% seamless canvas. This allows for immersive, cinematic visuals without the distracting grid lines, making it the superior choice for luxury lobbies, broadcast studios, and high-end command centers.
Can APEX displays be configured beyond the standard 16:9 aspect ratio?
Yes. Because APEX is a modular system, we are not bound by traditional television dimensions. You can build curved, ultra-wide, or vertical banners, as well as custom shapes that wrap around architectural features. Our control systems automatically scale your content to fit these custom configurations, ensuring your message always fills the space perfectly.
What refresh rates does APEX support for live event production?
APEX is built for performance with a 3840Hz refresh rate, which is the industry standard for broadcast and live events. This high speed eliminates “flicker” or banding on camera, ensuring that your video wall looks as crisp and fluid on a viewer’s phone or a television broadcast as it does to the people standing in the room.
